Vertical Magnetic Drive Pumps

Item No.: None

Vertical magnetic drive pumps made of SS 304 SS 316 or SS 316L. This is a centrifugal pump.Inlet outlet 1″ 2″ 3″ 4″ 5″ inch.

Description

MDP-V Series vertical magnetic drive pump blongs to the inline centrifugal pump.Made of stainless steel 304,316 or 316L.This pump has the following characteristics.

Operate without leakage, and transport inflammable, explosive, highly toxic and corrosive media;
Good material, pump body, impeller, isolation sleeve and other flow components are made of high-quality stainless steel;
Vertical installation, compact structure, small area;
Low vibration, low noise, especially smooth operation;

Note: centrifugal pumps are suitable for low viscosity liquids.If the liquid viscosity is high, Our recommended to choose stainless steel gear pump transfer liquid.

SS 304 316 316L Vertical Magnetic Drive Pumps structure and performance：

structure

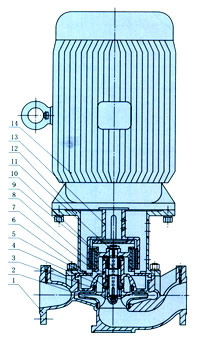

Vertical Magnetic Pumps structure

1	pump case	2	impeller	3	sealing ring	4	bearing body
5	distance sleeve	6	thrust collar	7	bearing	8	shaft sleeve
9	Shaft	10	Internal magnetic steel assembly	11	nut	12	join bracket
13	External magnetic steel assembly	14	Motor

performance

Model:80-200V;

80: Inlet and Outlet is DN80mm;

200: impeller diameter 200mm;

V: Vertical installation

Model	Flow (m3/h)	Head (M)	Power (KW)	NPSHr (M)
25-110V	4	15	0.75	2.3
25-125V	4	20	1.1	2.3
25-160V	4	32	2.2	2.3
32-100V	4.5	12.5	0.75	2
32-125V	4.5	20	1.1	2.3
32-160V	4.5	32	2.2	2.3
32-200V	4.5	50	4	2.0
40-125V	6.3	20	1.5	2.3
40-160V	6.3	32	3	2.3
40-200V	6.3	50	5.5	2.3
40-250V	6.3	80	11	2.3
50-100V	12.5	12.5	1.5	2.3
50-125V	12.5	20	2.2	2.3
50-160V	12.5	32	4	2.3
50-200V	12.5	50	7.5	2.3
50-250V	12.5	80	15	2.3
65-100V	25	12.5	22	2.5
65-125V	25	20	4	2.5
65-160V	25	32	5.5	2.5
65-200V	25	50	11	2.5
65-250V	25	80	18.5	2.5
80-100V	50	12.5	4	3
80-125V	50	20	7.5	3
80-160V	50	32	11	3
80-200V	50	50	18.5	3
80-250V	50	80	30	3
100-100V	100	12.5	7.5	4.5
100-125V	100	20	15	4.5
100-160V	100	32	18.5	4.5
100-200V	100	50	30	4
100-250V	100	80	45	4
125-125V	160	20	18.5	4
125-160V	160	32	30	4
125-200V	160	50	45	5.5
125-250V	160	80	75	5
