Air operated diaphragm pump is a double diaphragm pump; So, Short name to “AODD pump“, That’s how the aodd pumps got its name.
Air Operated Diaphragm Pump Model:
AODD-80
AODD：Air operated double diaphragm pump
80：Inlet/Outlet:80mm(3″)
AODD-10 (3/8″)
AODD-15 (1/2″)
AODD-20 (3/4″)
AODD-25 (1″)
AODD-32 (1.2″)
AODD-40 (1.5″)
AODD-50 (2″)
AODD-80 (3″)
AODD-100 (4″)
AODD-125 (5″)
Pump Material:

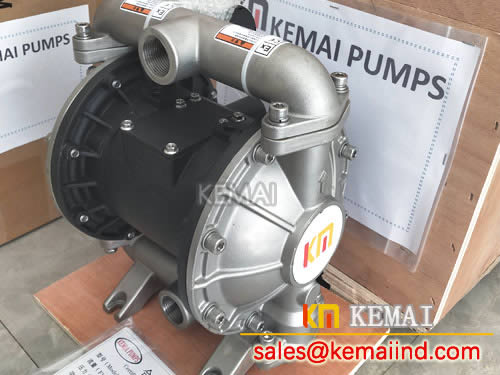

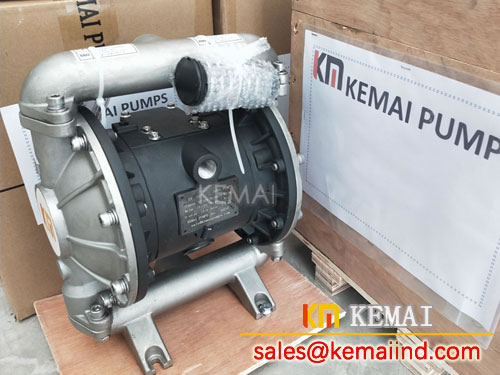

Stainless steel (SS 304, SS 316, SS 316L);

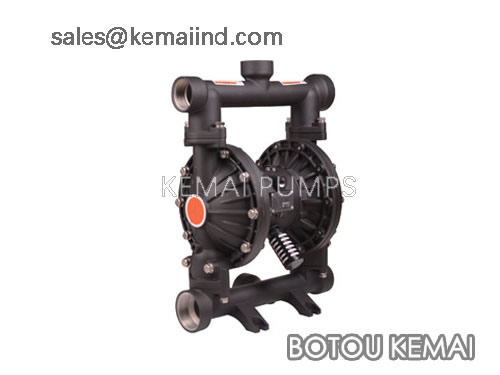

Aluminum alloy;

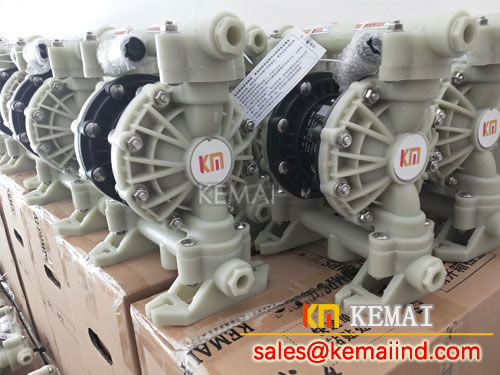

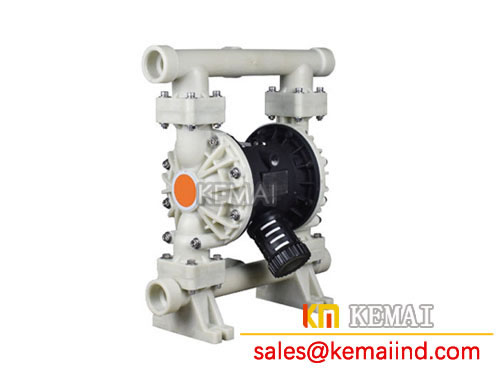

polypropylene (PP);
PVDF;
PTFE;
AODD Pump Scope of application:
- Oil tanker / passenger car / train discharging.
- Chemical industry production.
- Batch processing / mixing.
- Large tank / tank area transportation.
- Ordinary transportation / supply.
- System flush.
- Waste water disposal / liquid filter.
- Package /filler
- Circulation / recycle
Advantages
- It could be used in the situation of bad air source and the slider with derlin material in reversing value is very robust and compact.
- Smooth air course and the size of air inlet is from 1/2″ to 3″ with absolutely no obstacle which guarantees to change directions easily.
- 100% external maintatined reversing value.
- Compared to other two diaphragm pump,there are less moving parts.
- Pilot-type reversing valve has along mechanical lift which can guarantee its running day by day.
- One reversing valve is suitable for various pumps.
