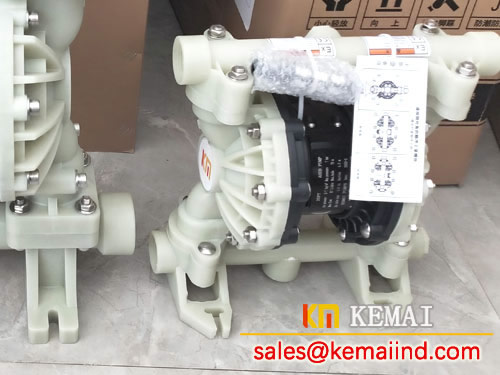

Plastic Diaphragm Pump

Item No.: None

Import Plastic Diaphragm Pump from China. Kemai are one of the best suppliers of high quality Plastic Diaphragm Pump.

Description

Plastic Diaphragm Pump Model:

AODD-10 3/8 inch 3/8″ ;
AODD-15   1/2 inch 1/2″ ;
AODD-25   1 inch 1″ ;
AODD-40 1.5 inch 1.5″ ;
AODD-50   2 inch 2″ ;
AODD-65   2.5 inch 2.5″ ;
AODD-80   3 inch 3″ ;
AODD-100 4 inch 4″ ;
AODD-125 5 inch 5″ ;

Plastic Diaphragm Pump Application:

Pump peanut butter, pickles, mashed potatoes, sausage, chocolate, hops, syrup, etc.
Pump paints, pigments, glues, adhesives, etc.
Pump all kinds of tiles, porcelain, brick and ceramic glaze slurry, etc.
Pump all kinds of abrasive, etchant, cleaning oil scale;
Pump all kinds of highly toxic, flammable, easy to play liquid, etc.
Pump all kinds of sewage, cement grouting and mortar, etc.
Pump all kinds of strong acid, strong alkali, strong corrosive liquid, etc.
As a variety of solid – liquid separation equipment of the front stage pressure feeding device.

Plastic Air Diaphragm Pump Data:

Model	Inlet/Outlet Calibre SIZE	Max.Flow (L/min)	Max.Head (M)	Outlet pressure (bar)	Air inlet size
AODD-10	10 mm (3/8″)	22	70	7	1/4″
AODD-15	15 mm (1/2″)	22	70	7	1/4″
AODD-20	20 mm (3/4″)	57	70	7	1/4″
AODD-25	25 mm (1″)	57	70	7	1/4″
AODD-25A	25 mm (1″)	116	84	8.4	1/2″
AODD-32	32 mm (1.2″)	151	84	8.4	1/2″
AODD-40	40 mm (1.5″)	151	84	8.4	1/2″
AODD-40A	40 mm (1.5″)	378.5	84	8.4	1/2″
AODD-50	50 mm (2″)	378.5	84	8.4	1/2″
AODD-65	65 mm (2.5″)	378.5	84	8.4	1/2″
AODD-50A	50 mm (2″)	586	84	8.4	1/2″
AODD-80	80 mm (3″)	586	84	8.4	1/2″
AODD-100	100 mm (4″)	586	84	8.4	1/2″
AODD-80A	80 mm (3″)	1041	84	8.4	3/4″
AODD-125	125 mm (5″)	1041	84	8.4	3/4″

Please check this table, and choose plastic air diaphragm pump model. “A” mean big flow.
