China Stainless Steel Magnetic Pump suppliers. Kemai offer high quality Stainless Steel Magnetic Pump at bet prices.

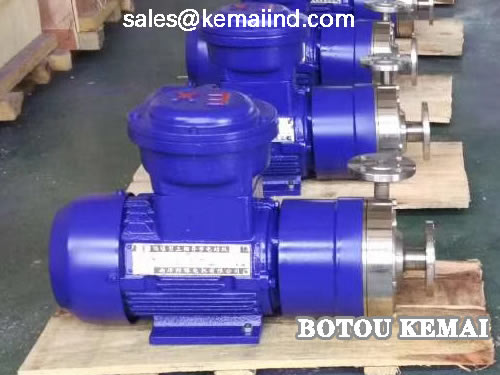

Stainless steel magnetic pump mainly by the pump, magnetic coupling, motor composition.
1. Pump shaft by the dynamic seal changed into closed static seal, completely avoid liquid leakage.
2. Independent lubrication and cooling water are not required, reducing energy consumption.
3. When overload, internal and external magnetic rotor relative slippage, motor, pump protection.
For example: 50MDPS-25-304
50：Inlet:50mm
MDP:Magnetic drive pump
S：Stainless steel
25:Head:25M
304: SS 304 (SS 316 or SS 316L)
| Model | caliber | Head （m） |
Flow （L/min） |
Motor （KW） |
Speed （r/min） |
voltage （V） |
(NPSH)r （m） |
|
| Inlet （mm） |
Outlet
（mm） |
|||||||
| 16MDPS-8 | 16 | 12 | 8 | 30 | 0.18 | 2900 | 220/380V | 6 |
| 20MDPS-12 | 20 | 12 | 12 | 50 | 0.37 | 2900 | 220/380V | 6 |
| 25MDPS-15 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380/400/415V | 6 |
| 32MDPS-15 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380/400/415V | 6 |
| 32MDPS-25 | 32 | 25 | 25 | 110 | 1.1 | 2900 | 380/400/415V | 5.5 |
| 40MDPS-20 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380/400/415V | 4 |
| 40MDPS-32 | 40 | 32 | 32 | 200 | 4 | 2900 | 380/400/415V | 4 |
| 50MDPS-25 | 50 | 40 | 25 | 240 | 4 | 2900 | 380/400/415V | 4 |
| 50MDPS-40 | 50 | 40 | 40 | 220 | 4 | 2900 | 380/400/415V | 4 |
| 50MDPS-50 | 50 | 32 | 50 | 130 | 5.5 | 2900 | 380/400/415V | 4 |
| 65MDPS-25 | 65 | 50 | 25 | 280 | 5.5 | 2900 | 380/400/415V | 4 |
| 65MDPS-35 | 65 | 50 | 35 | 450 | 7.5 | 2900 | 380/400/415V | 4 |
| 80MDPS-20 | 80 | 65 | 20 | 850 | 7.5 | 2900 | 380/400/415V | 4 |
| 80MDPS-35 | 80 | 65 | 35 | 850 | 11 | 2900 | 380/400/415V | 4 |
