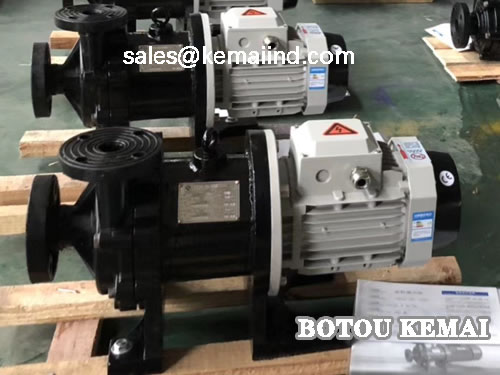

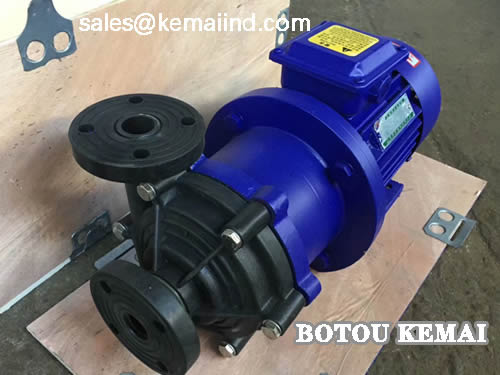

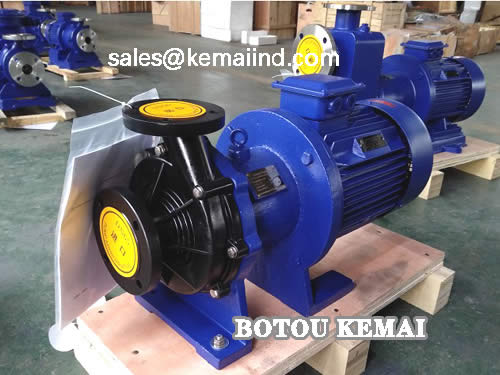

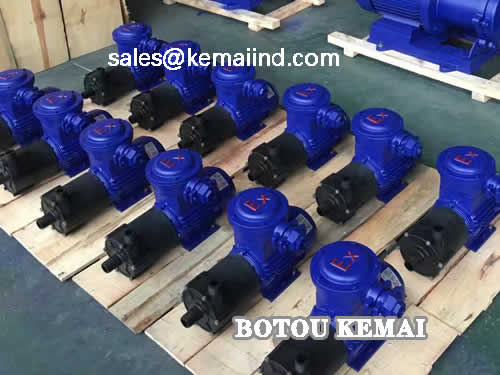

Plastic Magnetic Pump manufacturer and suppliers from China. Kemai provide best quality Plastic Magnetic Pump at competitive prices.
MDPP product is mainly made of reinforced PP and all flow-through pump parts adopt injection mould with resistance to most organic and inorganic acid,alkali and salty solutions,applicable for being exposed outdoor with fine anticorrosive performance of stress corrosion cracking.
For example: 65MDPP-32
65：Inlet:65mm
MDP:Magnetic drive pump
P：Engineering Plastic
32:Head:32M
| Model | caliber | Head （m） |
Flow （L/min） |
Motor （KW） |
Speed （r/min） |
voltage （V） |
(NPSH)r （m） |
|
| Inlet （mm） |
Outlet
（mm） |
|||||||
| 10MDPP-3 | 10 | 8 | 3 | 15 | 0.025 | 2900 | 220 | 7.8 |
| 14MDPP-5 | 14 | 10 | 5 | 20 | 0.12 | 2900 | 220/380 | 7.0 |
| 16MDPP-8 | 16 | 10 | 8 | 30 | 0.12 | 2900 | 220/380V | 6 |
| 20MDPP-12 | 20 | 12 | 12 | 50 | 0.37 | 2900 | 220/380V | 6 |
| 25MDPP-15 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380/400/415V | 5 |
| 32MDPP-15 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380/400/415V | 6 |
| 32MDPP-25 | 32 | 25 | 25 | 110 | 1.1 | 2900 | 380/400/415V | 5.5 |
| 40MDPP-20 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380/400/415V | 3.5 |
| 40MDPP-32 | 40 | 32 | 32 | 200 | 4 | 2900 | 380/400/415V | 3.5 |
| 50MDPP-25 | 50 | 40 | 25 | 240 | 4 | 2900 | 380/400/415V | 3.5 |
| 50MDPP-40 | 50 | 40 | 40 | 220 | 4 | 2900 | 380/400/415V | 3.5 |
| 65MDPP-32 | 65 | 50 | 25 | 280 | 7.5 | 2900 | 380/400/415V | 3.5 |
