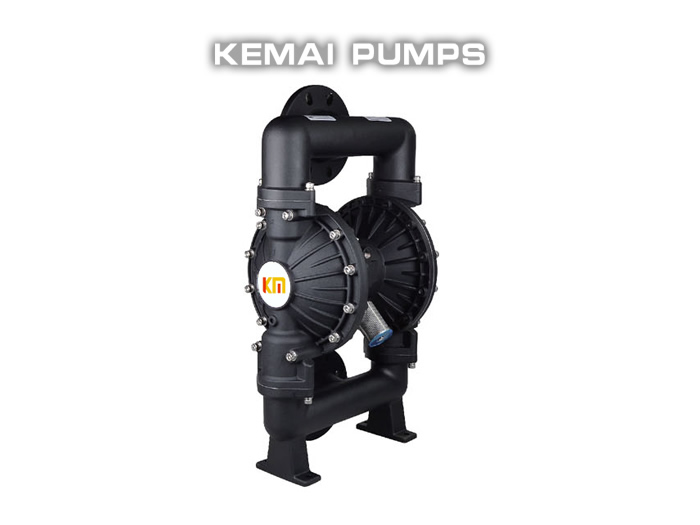

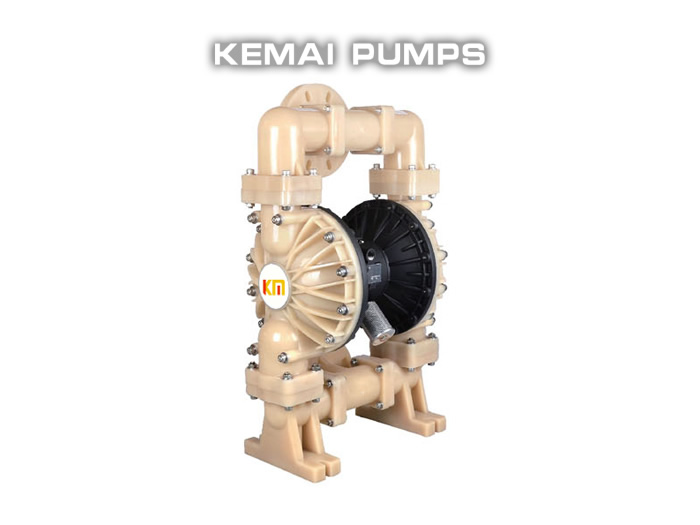

AODD-80 and AODD-100 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF. Manufacturers from CHINA. AODD-80 is 3 inch pump, AODD-100 is 4 inch pump.
AODD-80 / AODD-100 Diaphragm Pump Data Sheet:
| Model | AODD-80 |
| Max.Flow | 150GPM (568LPM) |
| Max.Working Pressure | 120psi (0.84Mpa, 8.4bar) |
| Fluid Inlet Size | 3 inch / 80 mm |
| Fluid Outlet Size | 3 inch / 80 mm |
| Air Inlet Size | 1/2 inch |
| Max.Suction Height(dry suction) | 18ft (5.48M) |
| Max.Permitted Grain | 1/4 inch (6.4mm) |
| Max.Air Consumption | 45 scfm |
| Every Reciprocating Flow | 1.03 gal (3.9L) |
| Max.Reciprocating Speed | 145 cpm |
| Model | AODD-100 |
| Max.Flow | 150GPM (568LPM) |
| Max.Working Pressure | 120psi (0.84Mpa, 8.4bar) |
| Fluid Inlet Size | 4 inch / 100 mm |
| Fluid Outlet Size | 4 inch / 100 mm |
| Air Inlet Size | 1/2 inch |
| Max.Suction Height(dry suction) | 18ft (5.48M) |
| Max.Permitted Grain | 1/4 inch (6.4mm) |
| Max.Air Consumption | 45 scfm |
| Every Reciprocating Flow | 1.03 gal (3.9L) |
| Max.Reciprocating Speed | 145 cpm |
