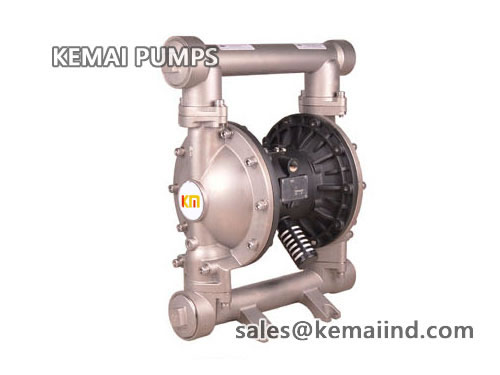

  • 2 inch diaphragm pump

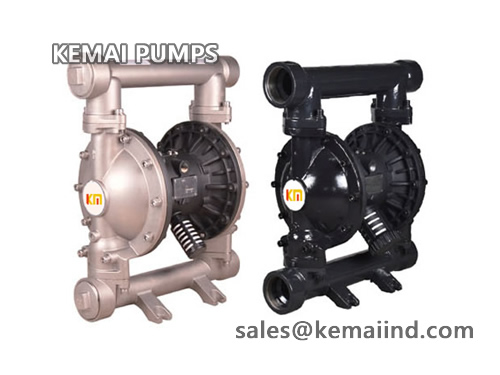

  • AODD-50 Diaphragm Pump

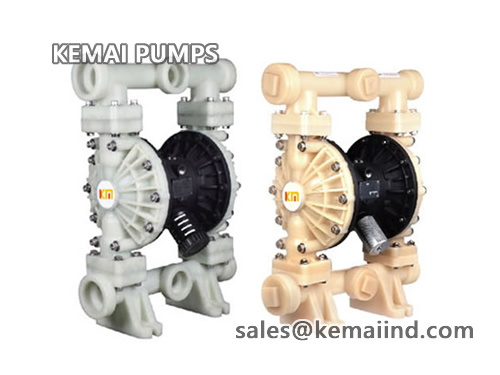

  • PP PVDF Diaphragm Pump AODD-50 65 40

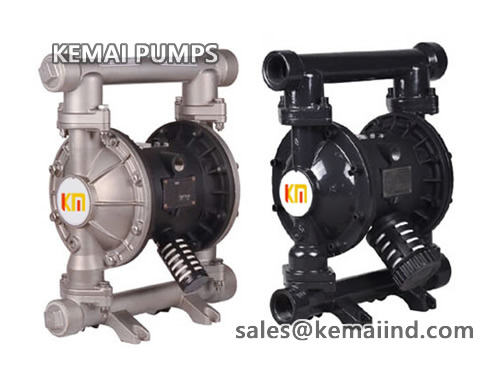

  • 2 inch stainless steel aluminum diaphragm pump
AODD-32/40/50/65 Diaphragm Pump
Item No.: None

AODD-32/40/50/65 Air operated double diaphragm Pump made of Stainless steel/plastic/Aluminum/PP/SG Iron/PVDF.Model:AODD-32; AODD-40; AODD-50; AODD-65;

Description

Please note:
AODD-32 and AODD-40 diaphragm Pump max flow and max head are same.
AODD-50 and AODD-65 diaphragm Pump max flow and max head are same.

  • AODD-32: Inlet/Outlet:1.2 inch (32mm); Max flow:151L/min; Max head:84M; 8.4bar; Air inlet size:1/2″
  • AODD-40: Inlet/Outlet:1.5 inch (40mm); Max flow:151L/min; Max head:84M; 8.4bar; Air inlet size:1/2″
  • AODD-50: Inlet/Outlet:2 inch (50mm); Max flow:378.5L/min; Max head:84M; 8.4bar; Air inlet size:1/2″
  • AODD-65: Inlet/Outlet:2.5 inch (65mm); Max flow:378.5L/min; Max head:84M; 8.4bar; Air inlet size:1/2″

Material: Stainless steel SS 304 316 316L/Plastic/Aluminum/PP/SG Iron/PVDF
