Gear Shaft Coupling CLZ Model

Home > Gear Coupling > Gear Shaft Coupling CLZ Model

Item No.: None

CLZ Model Gear Shaft Coupling main model:CLZ1 CLZ2 CLZ3 CLZ4 CLZ5 CLZ6 CLZ7 CLZ8 CLZ9 CLZ10 CLZ11 CLZ12 CLZ13 CLZ14 CLZ15 CLZ16 CLZ17 CLZ18 CLZ19 CLZ20 CLZ21 CLZ22 CLZ23 CLZ24 CLZ25 CLZ26 CLZ27 CLZ28 CLZ29 CLZ30 CLZ gear coupling.

Description

CLZ Gear Coupling Feature:

1. Strong carrying capacity.
2. Large amount of angular displacement compensation.With the same modulus, number of teeth and width, the allowable angular displacement of the drum teeth is larger than that of the straight gear.
3. The drum tooth surface improves the contact conditions of the inner and outer teeth, avoiding the disadvantages of angular displacement extrusion and stress concentration.At the same time, the friction and wear of the gear surface were improved.Noise reduction, long maintenance cycle.
5. Transmission efficiency is up to 99.7%.

CLZ Coupling Model:

CLZ10- bore diameter X bore length – bore diameter X bore length (mm)
CLZ10-130X252-100X212
CLZ10: The size of the code
one side: bore diameter 130mm ; bore length 252mm
other side: bore diameter 100mm ; bore length 212mm
Please indicate which side has gears.

CLZ Gear Coupling Size Data:

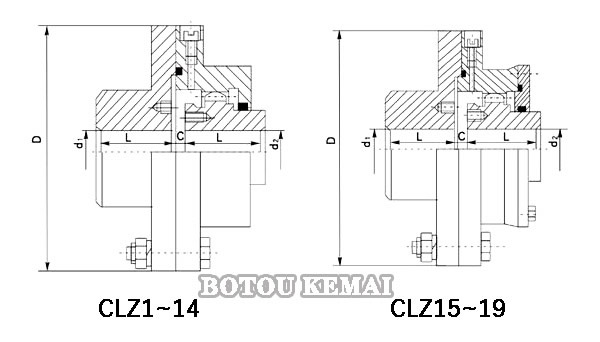

CLZ Gear Coupling Drawing

“*” use for d1

Model	Torque (N·m)	Speed (r/min)	Bore diameter d1、d2	Bore length	D	C	rotational inertia (kg·m2)	Weight (kg)
				Y
				L
CLZ1	710	3780	18 19	42	170	16	0.03	7.96
			20 22 24	52		6
			25 28	62		2.5
			30 32 35 38	82
			40* 42* 45* 48*	112
			50* 55* 56*
			60*	142
CLZ2	1400	3000	30 32 35 38	82	185	2.5	0.06	12.3
			40 42 45 48	112
			50 55* 56*
			60* 63* 65* 70*	142
CLZ3	3150	2400	40 42 45 48	112	220	2.5	0.12	25.4
			50 55 56
			60 63* 65*	142
			70* 71* 75*
			80* 85* 90*	172
CLZ4	5600	2000	45 48 50 55 56	112	250	2.5	0.22	37.5
			60 63 65	142
			70 71 75
			80* 85* 90* 95*	172
			100*	212
CLZ5	8000	1680	50 55 56	112	290	5	0.44	54.8
			60 63 65	142
			70 71 75
			80 85 90 95*	172
			100* 110* 120*	212
CLZ6	11200	1500	60 63 65	142	350	5	0.75	76.4
			70 71 75
			80 85 90 95	172
			100 110 120* 125*	212
			130*	252
CLZ7	18000	1270	65 70 71 75	142	350	5	1.25	106
			80 85 90 95	172
			100 110 120 125*	212
			130* 140* 150*	252
CLZ8	22400	1140	80 85 90 95	172	380	5	2.06	138
			100 110 120 125	212
			130 140 150*	252
			160* 170*	302
CLZ9	28000	1000	90 95	172	430	5	2.56	162
			100 110 120 125	212
			130 140 150	252
			160 170* 180*	302
			190*	352
CLZ10	50000	850	110 120 125	212	490	5	5.00	254
			130 140 150	252
			160 170 180	302
			190* 200* 220*	352
CLZ11	71000	750	120 125	212	545	5	9.25	374
			130 140 150	252
			160 170 180	302
			190 200 220	352
			240* 250*	410
CLZ12	100000	660	140 150	252	590	5	12.50	526.7
			160 170 180	302
			190 200 220	352
			240 250 260*	410
			280*	470
CLZ13	140000	660	160 170 180	302	680	7.5	29.20	794
			190 200 220	352
			240 250 260	410
			280 300*	470
CLZ14	200000	540	180	302	730	7.5	42.50	965
			190 200 220	352
			240 250 260	410
			280 300 320	470
			340*	550
CLZ15	250000	480	200 220	352	780	7.5	56.9	1196
			240 250 260	410
			280 300 320	470
			310 360 380	550
CLZ16	355000	425	240 250 260	410	900	10	120	1855
			280 300 320	470
			340 360 380	550
			400 420*	650
CLZ17	560000	380	260	410	1000	10	225	2690
			280 300 320	470
			340 360 380	550
			400 420 440	650
			450 460* 480*
CLZ18	710000	330	300 320	470	1100	10	325	3561
			340 360 380	550
			400 420 440	650
			450 460 480 500
			530*	800
CLZ19	1000000	300	360 380	550	1250	15	568	4808
			400 420 440	650
			450 460 480 500
			530 560	800
