CL Gear Coupling

Item No.: None

CL Gear Coupling Model:CL1 CL2 CL3 CL4 CL5 CL6 CL7 CL8 CL9 CL10 CL11 CL12 CL13 CL14 CL15 CL16 CL17 CL18 CL19; Material:45#/40Cr/42CrMo;

Bore Diameter:18~560mm ; Bore lenght:30~800mm; OD:170~1250mm.

Description

Features:

1. Small radial dimension and large bearing capacity.
2. Low speed and heavy load environment are advantages.
3. Torque range: 710~1000000N. M. Speed range :3780~300r/min;
Diameter of shaft hole :18~560mm;
Shaft hole length :30~800mm;
Maximum outside diameter: 170~1250mm;
4. Mainly used for reducer, motor and other equipment.

CL Gear Coupling Size:

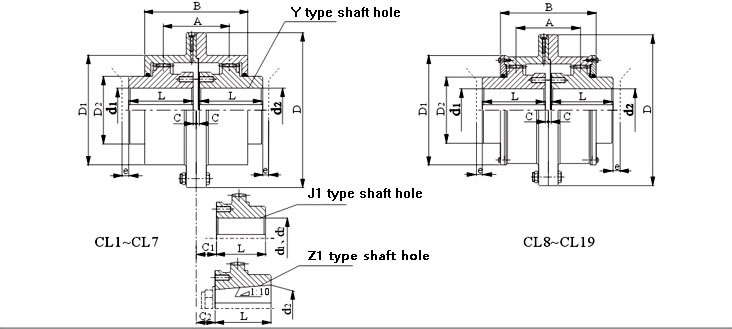

CL Type Gear Coupling Data Sheet

Model	Limited torque	Shaft hole Diameter	Shaft hole length	B	D	D1	D2	A	e	Weight Kg
	Limited torque	Shaft hole Diameter	Y,J1,Z1
	N.M	d1,d2,dz	L
CL1	710	18~40	30~112	106	170	110	55	49	12	10.9
CL2	1400	30~50	60~112	134	185	125	70	75	12	15.5
CL3	3150	40~60	84~142	170	220	150	90	92	18	28.3
CL4	5600	45~75	84~142	200	250	175	110	125	18	41.3
CL5	8000	50~90	84~172	220	290	200	130	145	25	60.4
CL6	11200	60~110	107~212	246	320	230	140	160	25	82.9
CL7	18000	65~120	107~212	286	350	260	170	185	30	118
CL8	22400	80~140	132~252	325	380	315	190	210	30	160
CL9	28000	90~150	132~302	335	430	365	210	220	30	212
CL10	50000	110~180	167~302	365	490	420	260	245	30	327
CL11	71000	120~220	167~352	405	545	470	300	280	35	443
CL12	100000	140~250	202~410	480	590	520	340	350	35	621
CL13	140000	160~280	242~470	524	680	560	380	375	40	918
CL14	200000	180~320	242~470	565	730	650	420	405	40	1123
CL15	250000	220~360	282~550	644	780	700	480	480	40	1360
CL16	35000	240~400	330~650	722	900	785	530	535	50	2264
CL17	560000	260~450	330~650	800	1000	885	630	625	50	3105
CL18	710000	300~500	330~650	900	1100	990	710	710	50	4219
CL19	1000000	360~560	450~800	910	1250	1090	800	730	60	5908
