Single beam coupling clamp type model & dimensions.China Botou Kemai co.,ltd flexible shaft coupling wholesale with best price.
1:Integrated structure,the overall material used in hight-strenth aluminum.
2:Elastomer compensate radial,angular and axial misalignment.
3:Spring-loaded design with cushioning effect.
4:Clamp type.
SBCC Series
SBCC-Outside diameter X Total length – d1 bore X d2 bore
Example: SBCC-38X41-10X10
S: Single
BC: Beam coupling
C: Clamp Type
38: Outside diameter
41: Total length
10: d1 bore diameter
10: d2 bore diameter

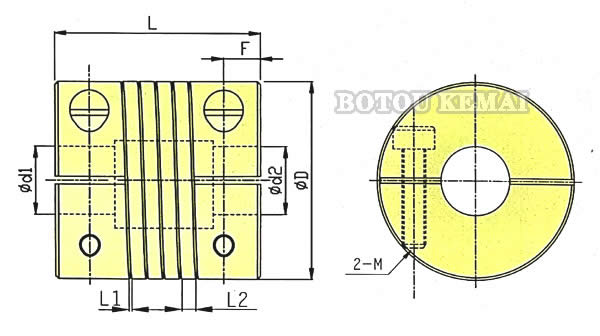

| Model | d1 d2
Bore |
ΦD | L | L1 | L2 | C | F | M | Wrench Torque
(N.M) |
| SBCC-16X23 | 3,4,5,6 | Φ16 | 23 | 0.4 | 2 | 4.9 | 3.6 | 2-M2.5X8 | 1.5 |
| SBCC-19X23 | 4,5,6, 6.35 ,7,8 | Φ19 | 23 | 0.4 | 2 | 5.9 | 4.3 | 2-M2.5X10 | 1.5 |
| SBCC-25X25 | 5,6, 6.35 ,7,8,9, 9.525 ,10,11,12 | Φ25 | 25 | 0.4 | 2 | 6.2 | 4.8 | 2-M3X12 | 2.5 |
| SBCC-25X32 | 5,6, 6.35 ,8,9, 9.525 ,10,11,12 | Φ25 | 32 | 0.4 | 2.75 | 6.2 | 5.3 | 2-M3X12 | 2.5 |
| SBCC-28.5X38 | 6, 6.35 ,8,9, 9.525 ,10,11,12,14 | Φ28.5 | 38 | 0.4 | 2.75 | 9 | 6.8 | 2-M4X14 | 3.5 |
| SBCC-32X32 | 8,9, 9.525 ,10,11,12,14,15,16 | Φ32 | 32 | 0.4 | 2.75 | 10.5 | 4.8 | 2-M4X16 | 3.5 |
| SBCC-32X41 | 8,9, 9.525 ,10,11,12,14,15,16 | Φ32 | 41 | 0.4 | 2.75 | 10.5 | 6.7 | 2-M4X16 | 3.5 |
| SBCC-38X41 | 8,9, 9.525 ,10,11,12,14,15,16,18 | Φ38 | 41 | 0.4 | 3.5 | 12.5 | 7 | 2-M5X16 | 8 |
| SBCC-40X50 | 10,11,12, 12.7 ,14,15,16,19 | Φ40 | 50 | 0.5 | 3.5 | 13.6 | 7 | 2-M5X20 | 8 |
| SBCC-50X50 | 12, 12.7 ,14,15,16,19,20,22,24 | Φ50 | 50 | 0.5 | 3.5 | 13.6 | 7 | 2-M6X25 | 15 |
| Model | Rated torque
(N.M) |
Maximum torque
(N.M) |
Allow Radial direction
(mm) |
Allow angle
(°) |
Allow Axis
(mm) |
Maximum speed
(rpm) |
Static torsional stiffness
(N.M/rad) |
Moment of inertia
(kg.M2) |
Flexible colloidal material | Surface Treatment | Weight
(g) |
| SBCC-16X23 | 0.5 | 1 | 0.15 | 3 | ±0.2 | 9500 | 45 | 3.4×10-7 | High strength aluminum alloy | Oxidation treatment | 8.1 |
| SBCC-19X23 | 0.9 | 1.8 | 0.15 | 3 | ±0.2 | 7700 | 52 | 9.1×10-7 | 12 | ||
| SBCC-25X25 | 2 | 4 | 0.15 | 3 | ±0.2 | 6100 | 100 | 2.3×10–6 | 23 | ||
| SBCC-25X32 | 2.5 | 5 | 0.15 | 3 | ±0.2 | 6100 | 150 | 2.6×10–6 | 32 | ||
| SBCC-28.5X38 | 3 | 6 | 0.15 | 3 | ±0.2 | 6000 | 210 | 4.5×10–6 | 47 | ||
| SBCC-32X32 | 4 | 8 | 0.15 | 3 | ±0.2 | 5800 | 250 | 8.1×10–6 | 55 | ||
| SBCC-32X41 | 4 | 8 | 0.15 | 3 | ±0.2 | 5800 | 220 | 9.7×10–6 | 86 | ||
| SBCC-38X41 | 6.5 | 13 | 0.15 | 3 | ±0.2 | 5500 | 400 | 3.0×10–5 | 118 | ||
| SBCC-40X50 | 8 | 16 | 0.15 | 3 | ±0.2 | 5000 | 500 | 3.3×10–5 | 125 | ||
| SBCC-50X50 | 20 | 40 | 0.15 | 3 | ±0.2 | 4500 | 785 | 9×10–5 | 220 |
